Containers

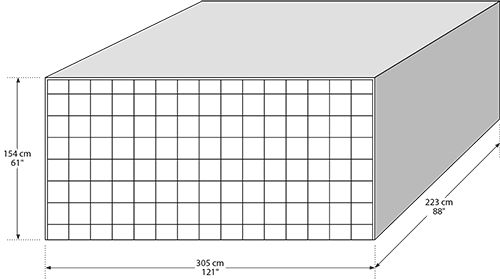

AMP

ulds_containers_tab1

ulds_containers_tab1

Factsheet

IATA code AMP
Loadable 333 / 343 / 77W
Usable loading area 305 x 223 cm / 120 x 88 in
Max. height 154 cm / 61 in
Tare weight 270 kg / 595 lbs
Max. gross weight 5103 kg / 11250 lbs



Weights depend on the structural weight limitations of the different pallet / container positions in the aircraft.

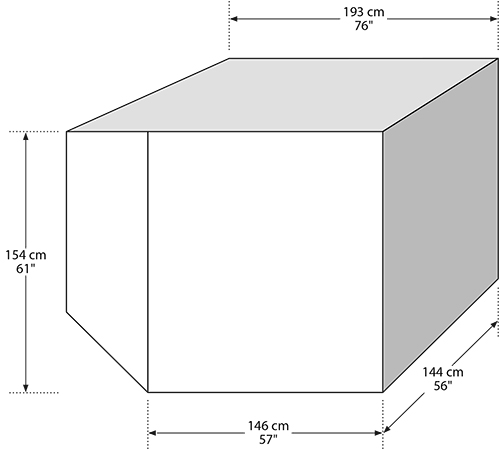

AKE

ulds_containers_tab2

ulds_containers_tab2

Factsheet

IATA code AKE
Loadable 333 / 343 / 77W
Usable loading area 146 x 144 cm / 57 x 57 in
Max. height 153 cm / 60 in
Top lenght 193 cm / 76 in
Tare weight 66 - 88 kg / 145 - 194 lbs
Max. gross weight 1587 kg / 3500 lbs



Weights depend on the structural weight limitations of the different pallet / containers positions in the aircraft.

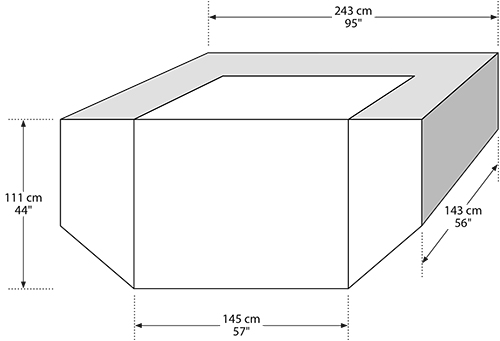

AKH / AKW

ulds_containers_tab3

ulds_containers_tab3

Factsheet

IATA code AKH / AKW
Loadable 319 / 320 / 321
Usable loading area 145 x 143 cm / 57 x 56 in
Max. height 111 cm / 44 in
Top lenght 243 cm / 96 in
Tare weight 82 kg / 180 lbs
Max. gross weight 1134 kg / 2500 lbs

DKH

ulds_containers_tab4

ulds_containers_tab4

Factsheet

IATA code DKH
Loadable 319 / 320 / 321
Usable loading area 145 x 143 cm / 4 x 4 ft
Max. height 100 cm / 3 ft
Top lenght 243 cm / 7 ft
Tare weight 125 kg / 275 lbs
Max, gross weight 1134 kg / 2500 lbs
